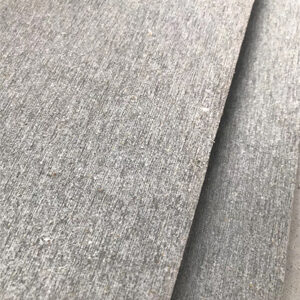

Using 3mm to 6mm Sanded MgO Boards as a substrate for HPL or PVC lamination represents a highly specialized, precision-driven segment of the building materials industry. Thin MgO boards (3mm, 4mm,5mm and 6mm) laminated with a decorative face are the gold standard for lightweight marine partitions, high-end RV interiors, cleanroom ceiling tiles, fire-rated wall panels, and commercial cabinetry cladding.

However, laminating on thin sheets introduces unique structural and manufacturing challenges that do not exist with thicker (9mm-12mm) boards. Below is the technical breakdown and production logic required to successfully process 3mm to 6mm sanded MgO boards for lamination.

Application Breakdown by Thickness

• 3mm to 4mm Sanded MgO:
  • Primary Use: PVC foil lamination or very thin micro-HPL overlays.
  • Applications: Lightweight ceiling tiles (e.g., sag-free cleanroom ceilings), internal linings for cruise ships, trains, and recreational vehicles (RVs) where every kilogram matters.
  • Key Characteristic: Highly flexible, requiring delicate handling on automated conveyor lines to prevent snapping before lamination.
• 5mm to 6mm Sanded MgO:
  • Primary Use: Standard HPL lamination (0.5mm- 1.0mm face thickness).
  • Applications: Modular cleanroom wall linings, hospital wall cladding panels, flush fireproof door skins, and architectural column covers.
  • Key Characteristic: Provides excellent impact resistance and structural rigidity while maintaining a slim profile that mounts flush with standard architectural framing tracking.
