When Mgo board are attached to the wall, the wall takes on fire rating of the sheet.
A 10mm external sheet gives up to a 90 minute fire rating. A 12mm sheet gives a 120 minute fire rating and a 14mm sheet gives a 180 minute fire rating. There are a number of points to observe:
-The walls will require 14kg/m3 of fibre glass insulation at a minium of 70mm thick for 60 minute ratings, and 90mm thick for 90 ...
Fiber Cement Cladding Panel is one kind of prefabricated interior cladding product that protect your internal building and home. Over the past years, UV Coating fiber cement cladding panel had gained more and more popularity and be deemed as one of the best investments for building interior cladding, yet surprisingly few people know about it.
What is the advantage ...
Continue Reading →
Specification
| Standard Size |
1220MM*2440MM (tailor-made size available against request) |
| Thickness | 5mm-18mm |
| Density | 1.5-1.7g/cm³ |
| Color | Many colors are available for choice |
| Water Absorption | ≤2.7% |
| Fire Assistance | Incombustibility A1 class(GB8624-A) |
| Certification | CE SGS ISO |
| Bending Strength | ≥16Mpa |
| Thermal Conductivity | 0.02w(m.k)—0.05 |
| Application | External and internal wall facade cladding use, such as office building, commercial residential building, hotel, tunnel, airport,, subway, hospital and living room, bedroom, restroom, kitchen, ... |
Size& Features
China Factory High Density 8mm Fireproof Calcium Silicate Board
100% no asbestos calcium silicate board (No asbestos no formaldehyde, no benzene and no any harmful substances)
Non asbestos fireproof low density light weight calcium silicate board belongs to a new generation of “green” building materials, unique environmental protection function in the excellent performance on the basis of common no asbestos fireproof low density light weight calcium silicate board, using cellulose fiber reinforced, and adding other auxiliary materials, combined with the production of the ...
Continue Reading →Tools:
No special toos are required. The products can be used with normal nails, fastened by normal or self-driling screw and cut by an electric power saw with a diamond blade
Fixing
Magnesium Oxide board can be fixed to both timber(minimum size 1.5×3 inches) or steel frames(at least 0.55mm thickness). The board must be supported at the edge at intermediate positions with centers not exceeding 600mm. Screws must be located more than 12mm from edges and 50mm from board corners
Fastener:
Fasterners can be both ...
Continue Reading →EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads & cement.
Raw Materials
Calidad: Primera
Clasificacion: Borde Recto
Espesor: 10mm
Ancho: 1,20 mts
Largo: 2,40 mts
Descripcion del producto
PLACAS CONSTRUCTIVAS
Son placas de cemento que destacan la funcionalidad y resistencia como sus atributos principales, constituye la gama que brinda soluciones a quien tiene que construir paredes y cerramientos exteriores, cielorrasos, entrepisos, bajo techos, tabiques en zonas húmedas, etc., dando respuesta a las necesidades propias de la ...

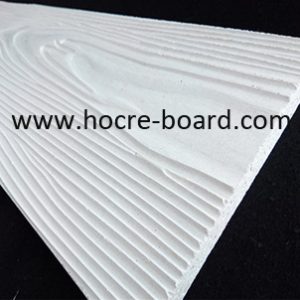

Continue Reading →Mgo siding optimizing construction time, Mgo sidings are easy to install and can be boated before or after installation(double coating)with optional acrylic paint. With high protection against fire, water and insect damage, Mgo sidings provide an idea construction solution for wood cladding.
| Types: | Siding Pattern Wood |
| Application | Interior,Exterior |
| Thickness(mm) | 9mm, 10mm,12mm |
| Size(mm) | 190x2440mm, 225x2440mm |
| Edge Cut: |
Mgo floor panel offering an alternative solution to OSB or plywood-based construction materials, Mgo floor panel set the industry satandard for load capacity and consistent quality without laps, gaps or voids.
Types:
| Application | Interior |
| Thickness(mm) | 15mm,16mm,18mm,20mm |
| Size(mm) | 1200x2400mm,1220x2440mm |
| Edge Cut: | Square(SE) |
| Texture: | Smooth/Rough |
